How ADSB Works: Ensuring Safe and Efficient Air Travel

how adsb works ensuring safe and efficient air travel 293623 1

Air travel has become an integral part of our lives, with millions of planes soaring through the skies daily.

Have you ever wondered how these majestic machines navigate and communicate with each other?

Enter ADS-B, the cutting-edge technology that revolutionizes aviation surveillance.

In this article, we’ll unravel the mysteries behind how ADS-B works, revealing its ability to broadcast an aircraft’s precise location, transmit weather updates, and share valuable traffic information.

So buckle up and join us on this captivating journey through the skies!

how ads b works

ADS-B, or Automatic Dependent Surveillance-Broadcast, is a surveillance technology used in aviation.

It works by using aircraft positioning, avionics, and ground infrastructure to provide accurate positioning information between aircraft and air traffic control (ATC).

ADS-B is more precise than traditional radar systems and consists of two services: ADS-B Out and ADS-B In.

ADS-B Out is responsible for broadcasting an aircraft’s GPS location, altitude, ground speed, and other data to other aircraft and ATC.

The requirements for ADS-B Out are outlined in 14 CFR § 91.225, while the equipment performance requirements are specified in §91.227.

On the other hand, ADS-B In provides important information to the cockpit, such as weather and traffic position.

Basic traffic situational awareness does not require authorization and can be accessed using ADS-B In.

However, for advanced operations using ADS-B In, authorization is required.

Operators must comply with OpSpec A354 and OpSpec A355, and an application checklist is available for the A355 Operator Application (CAVS).

For more information on ADS-B and its applications, you can visit the NextGen Equip ADS-B website.

Key Points:

  • ADS-B is a surveillance technology used in aviation for accurate positioning information between aircraft and air traffic control (ATC).
  • ADS-B consists of two services: ADS-B Out and ADS-B In.
  • ADS-B Out broadcasts an aircraft’s GPS location, altitude, ground speed, and other data to other aircraft and ATC.
  • ADS-B In provides important information to the cockpit, such as weather and traffic position.
  • Basic traffic situational awareness using ADS-B In does not require authorization.
  • Advanced operations using ADS-B In require authorization and compliance with specific regulations.

Sources
1
2
3
4

Check this out:

💡 Did You Know?

1. Before the introduction of ADS-B (Automatic Dependent Surveillance-Broadcast) technology, air traffic controllers relied heavily on radar systems to track aircraft positions. ADS-B has greatly enhanced the accuracy and reliability of aircraft tracking.

2. ADS-B technology relies on GPS signals for precise positioning of aircraft. The aircraft equipped with ADS-B continuously broadcast their position, altitude, and other information to air traffic control and nearby aircraft.

3. One fascinating aspect of ADS-B is that it allows pilots to see the same real-time aircraft traffic information that air traffic controllers see. This situational awareness enables pilots to make better decisions regarding their flight path.

4. One of the little known facts about ADS-B is that it not only enhances safety in the air, but it can also improve safety on the ground. Ground vehicles, such as airport service vehicles, can be equipped with ADS-B receivers, allowing them to be tracked in real-time and reducing the risk of collisions.

5. ADS-B has revolutionized the concept of “see and avoid” in aviation. With ADS-B, aircraft can “see” each other digitally on their cockpit displays, enhancing collision avoidance capabilities and overall airspace safety.

Introduction To ADS-B

ADS-B, which stands for Automatic Dependent Surveillance-Broadcast, is a cutting-edge surveillance technology used in aviation. It revolutionizes the way aircraft are tracked and monitored in the skies, providing accurate positioning information between aircraft and Air Traffic Control (ATC).

ADS-B relies on:

  • Aircraft positioning
  • Avionics
  • Ground infrastructure

This combination enables precise and efficient air travel.

ADS-B blockquote: “Automatic Dependent Surveillance-Broadcast revolutionizes the way aircraft are tracked and monitored in the skies, providing accurate positioning information between aircraft and Air Traffic Control.”

ADDITIONAL BULLET POINTS:

  • Enhances situational awareness for pilots and air traffic controllers
  • Facilitates more precise navigation and flight routing
  • Supports the implementation of advanced air traffic management systems
  • Promotes safer and more efficient air travel.

Components Of ADS-B System

The ADS-B system consists of two essential components: ADS-B Out and ADS-B In.

ADS-B Out is responsible for broadcasting an aircraft’s GPS location, altitude, ground speed, and other important data to ground stations and other aircraft in the vicinity. This enables real-time tracking and situational awareness for all stakeholders involved.

On the other hand, ADS-B In provides pilots with weather and traffic position information directly in the cockpit. This feature enhances safety by providing crucial information about nearby aircraft and potential weather hazards. Basic traffic situational awareness using ADS-B In does not require any authorization, while more advanced operations using ADS-B In may require specific authorization.

ADS-B: More Precise Than Radar

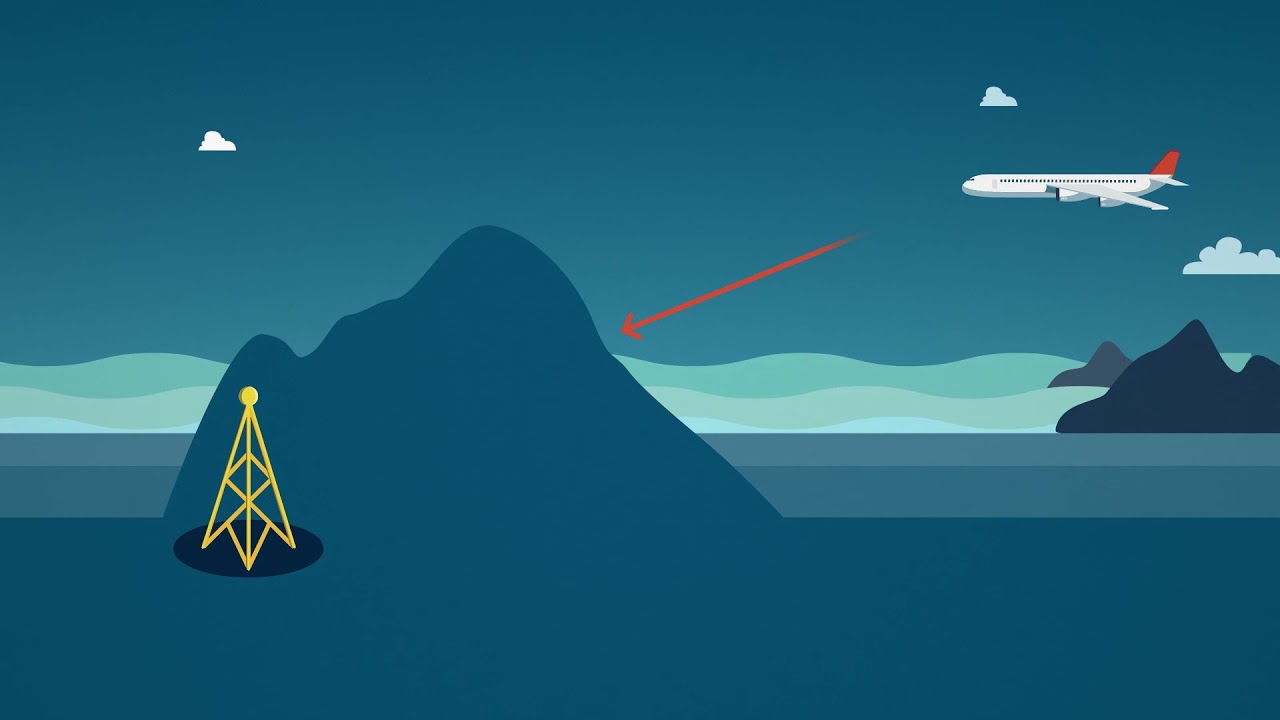

One significant advantage of ADS-B over traditional radar technology is its precision. Radar relies on the reflection of electromagnetic waves off an aircraft to determine its position and velocity. However, ADS-B uses highly accurate GPS positioning, which eliminates the limitations of radar, such as terrain obstructions and range limitations.

ADS-B offers more accurate and reliable data, even in areas where radar coverage may be limited. This improved precision enhances safety by enabling more efficient navigation, reducing the risk of mid-air collisions, and providing enhanced separation between aircraft.

Benefits of ADS-B:

  • More accurate positioning and velocity data
  • Eliminates limitations of radar technology
  • Works even in areas with limited radar coverage
  • Enhances safety by improving navigation and reducing mid-air collision risk
  • Provides enhanced separation between aircraft

“ADS-B offers highly precise and reliable data that surpasses the limitations of traditional radar technology.”

Understanding ADS-B Out

ADS-B Out is a critical component of the ADS-B system responsible for broadcasting an aircraft’s information to other aircraft and ground stations. This includes its GPS location, altitude, ground speed, and other relevant data. By transmitting this information, ADS-B Out enhances situational awareness for pilots, air traffic controllers, and other stakeholders.

The requirements for ADS-B Out are outlined in 14 CFR § 91.225. This regulation sets forth the specific performance requirements for aircraft to be equipped with ADS-B Out technology. Compliance with these requirements ensures the proper functioning and intercommunication of ADS-B-equipped aircraft in the airspace system.

Requirements For ADS-B Out

To meet the requirements for ADS-B Out, aircraft must be equipped with certified ADS-B Out avionics that meet the performance requirements specified in §91.227. This ensures accurate and reliable transmission of data to other aircraft and ATC. It is essential for aircraft owners and operators to ensure their ADS-B Out equipment is properly installed and compliant with the regulatory standards.

Aircraft operating in controlled airspace in the United States must be equipped with ADS-B Out by January 1, 2020. This mandate ensures the widespread adoption of ADS-B technology and the seamless integration of all aircraft into the Next Generation Air Transportation System (NextGen).

  • ADS-B Out equipment must be certified and meet performance requirements
  • Compliance ensures accurate and reliable data transmission
  • January 1, 2020, deadline for US aircraft operating in controlled airspace
  • Mandate promotes adoption of ADS-B technology
  • NextGen facilitates seamless integration of aircraft

“To meet the requirements for ADS-B Out, aircraft must be equipped with certified ADS-B Out avionics that meet the performance requirements specified in §91.227.”

Equipment Performance Requirements For ADS-B Out

To ensure the proper functioning of ADS-B Out avionics, it is important to meet specific equipment performance requirements outlined in §91.227. These requirements cover areas such as transmission power, accuracy, integrity, and continuity of the transmitted data.

Compliance with these performance requirements is crucial for the reliable operation of ADS-B Out systems. It ensures that the transmitted information is accurate, timely, and consistent, enabling precise tracking and coordination between aircraft and ATC.

Exploring ADS-B In

ADS-B In is an essential aspect of the ADS-B technology, providing pilots with valuable information within the cockpit. This feature enables pilots to receive real-time weather updates and traffic position information, enhancing their situational awareness and decision-making capabilities.

By having real-time weather updates, pilots can avoid hazardous weather conditions and plan their routes accordingly. Additionally, ADS-B In provides crucial information about nearby aircraft, including their positions, altitudes, and ground speeds. This knowledge allows pilots to maintain safe separation and make informed decisions to avoid potential conflicts.

  • ADS-B In provides valuable weather updates.
  • Pilots can avoid hazardous weather conditions.
  • ADS-B In offers traffic position information.
  • Pilots can maintain safe separation using this data.
  • The technology helps pilots make informed decisions.

“ADS-B In enhances pilots’ situational awareness and decision-making capabilities.”

Basic Traffic Situational Awareness With ADS-B In

One of the significant benefits of ADS-B In is its ability to provide basic traffic situational awareness without the need for specific authorization. Pilots can receive information about nearby aircraft and determine their positions relative to their own. This improved situational awareness significantly enhances safety in congested airspace and minimizes the risk of mid-air collisions.

Pilots can make more informed decisions about altitude changes, course adjustments, and maintaining safe separation from surrounding traffic. ADS-B In is a valuable tool for general aviation pilots, enabling safer and more efficient navigation in both visual and instrument flight conditions.

Advanced Operations & Authorization For ADS-B In

While basic traffic situational awareness using ADS-B In does not require any authorization, there are certain advanced operations that may necessitate specific authorization. For such advanced operations, operators must comply with the requirements specified in OpSpec A354 and OpSpec A355.

Operators interested in conducting ADS-B In operations beyond basic traffic awareness should consult the application checklist available for the A355 Operator Application (CAVS). This resource provides operators with guidance and ensures compliance with the necessary operational requirements to utilize ADS-B In for advanced operations.

  • Advanced operations may require specific authorization
  • Compliance with OpSpec A354 and OpSpec A355 is necessary for advanced operations
  • Consult the A355 Operator Application (CAVS) application checklist for conducting ADS-B In operations beyond basic traffic awareness.

“For such advanced operations, operators must comply with the requirements specified in OpSpec A354 and OpSpec A355.”

Resources For More Information On ADS-B

The NextGen Equip ADS-B website is a valuable resource for comprehensive information on ADS-B. It provides regulations, safety guidelines, and technical specifications to pilots, aircraft operators, and aviation enthusiasts.

The website offers detailed insights into the implementation and operation of ADS-B, with the goal of promoting safe and efficient air travel. It serves as a one-stop hub for all things ADS-B, empowering users with the knowledge and resources needed to navigate the skies in the most advanced and secure manner possible.

Key features of the NextGen Equip ADS-B website:

  • Regulations related to ADS-B
  • Safety guidelines for pilots and operators
  • Technical specifications of ADS-B technology
  • Detailed insights into implementation and operation
  • Promotes safe and efficient air travel
  • One-stop hub for all things ADS-B

“The NextGen Equip ADS-B website is an invaluable resource providing comprehensive information on ADS-B, including regulations, safety guidelines, and technical specifications. It aims to promote safe and efficient air travel by empowering users with detailed insights into the implementation and operation of ADS-B.”

FAQ

How does ATC use ADS-B?

ATC utilizes ADS-B technology to enhance aircraft tracking and improve situational awareness. With its near-instantaneous transmission, ADS-B provides real-time information to both pilots and controllers, enabling them to have a shared understanding of the airspace. This technology enables air traffic control to make significant advancements by allowing aircraft to maintain precise intervals in time and space, ensuring safer and more efficient operations.

Where does ADS-B data come from?

ADS-B data is sourced from an aircraft’s GPS receiver, which is responsible for providing precise position and groundspeed information. This is achieved through the reception of radio signals from a constellation of satellites. By comparing the timestamps of when the signals were transmitted and received, the GPS receiver calculates accurate data regarding the aircraft’s position and speed. This reliable information forms the foundation of ADS-B technology, enabling efficient air traffic management and enhancing flight safety.

How does ADS-B work over ocean?

ADS-B, or Automatic Dependent Surveillance-Broadcast, functions over the ocean through the implementation of Space-Based ADS-B. This system involves the use of receivers installed on satellites, allowing for surveillance of aircraft in oceanic airspace. By adopting this concept, aircraft can be tracked with near real-time accuracy, enhancing safety and efficiency for all users. With Space-Based ADS-B, global coverage is achieved, enabling continuous surveillance of flights across the entire globe. This innovation marks a significant development in aviation technology, providing enhanced situational awareness and facilitating improved air traffic management over the open ocean.

Does ADS-B use a transponder?

Yes, ADS-B does require the use of a transponder. In order to be considered for an ADS-B deviation authorization with ADAPT, the aircraft must be equipped with an operational transponder and an operational altitude encoder (Mode C). This ensures that the aircraft can accurately transmit its position and altitude information to other ADS-B equipped aircraft and ground stations. Therefore, ADS-B relies on the use of a transponder to function effectively and provide accurate surveillance data.
